Genesis Series

With larger capacity and vast interior space, our Genesis Series has been purposed-designed to embody a tremendous wide span of up to 210’ wide (approx. 64 m), using various depths of truss from 34” deep (approx. 86 cm) in model Genesis 3, and up to 86” (approx. 218 cm) in Genesis model 6, to easily accommodate any commercial or agricultural application with ample unobstructed space.

All Genesis Series profiles meet/exceed site-specific design criteria, offering a gigantic structure to fulfill the need for large interior volume, with maximum ventilation and exceptional clearance.

• Fully engineered specifically for your site location.
• Available with a structural engineer’s seal.
• Gable-style design & sizing in many different profiles to fit your needs.
• Custom designs available.
• Exceptional value.
• Designed specifically for the widest span possible.

Commercial uses:

Salt and sand storage, commodity storage, military, sports multi-complex, boat storage, warehousing, vehicle storage, manufacturing, general storage, and transfer station.

Agricultural uses:

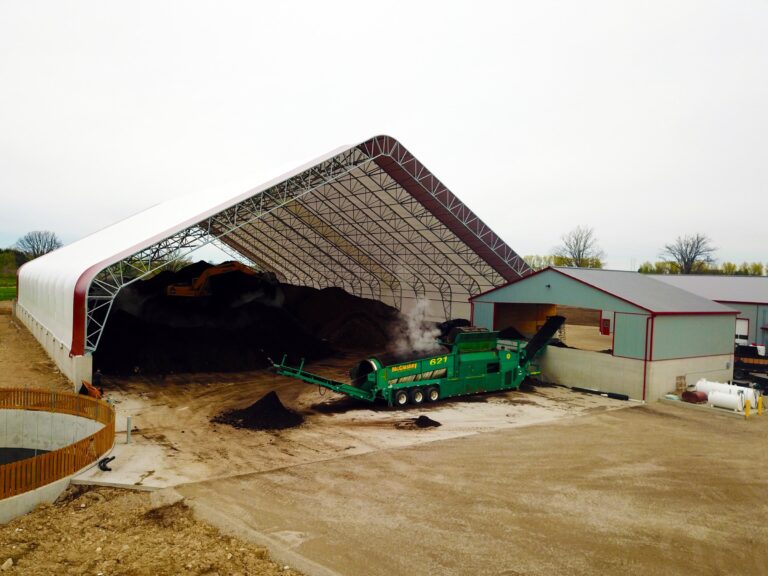

Composting, equine riding arena.

Municipal and Public Work uses:

Commodity storage, salt and sand storage, military, sports multi-complex, boat storage, warehousing, vehicle storage, manufacturing, general storage, and transfer station.

Other industry uses:

Agribusiness, aviation, boats/marina, break bulk, cold storage, commercial distribution, equipment storage (commercial), government facilities, indoor golf, loading docks, logistics & transportation, maintenance/construction, manufacturing, marine and ports, mining, municipal, oil, gas, energy, port authority, transportation.

• Building widths start at 50 ft. and up to 210 ft. wide (approx. 15 m to 64 m).
• Can be of any length.
• Building height and interior clearance are designed to meet the customer’s specific needs.

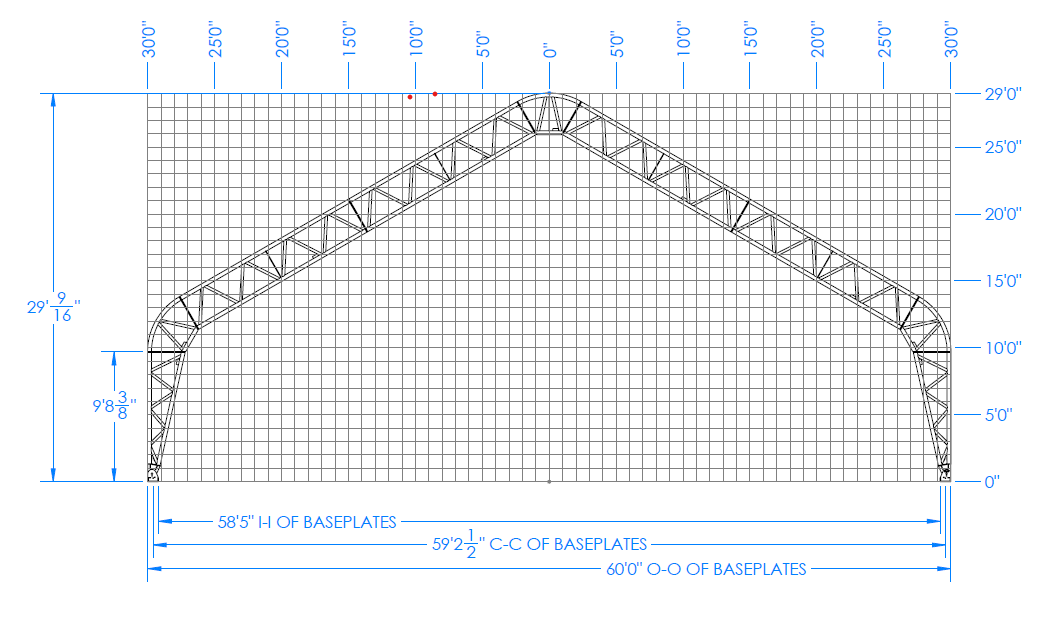

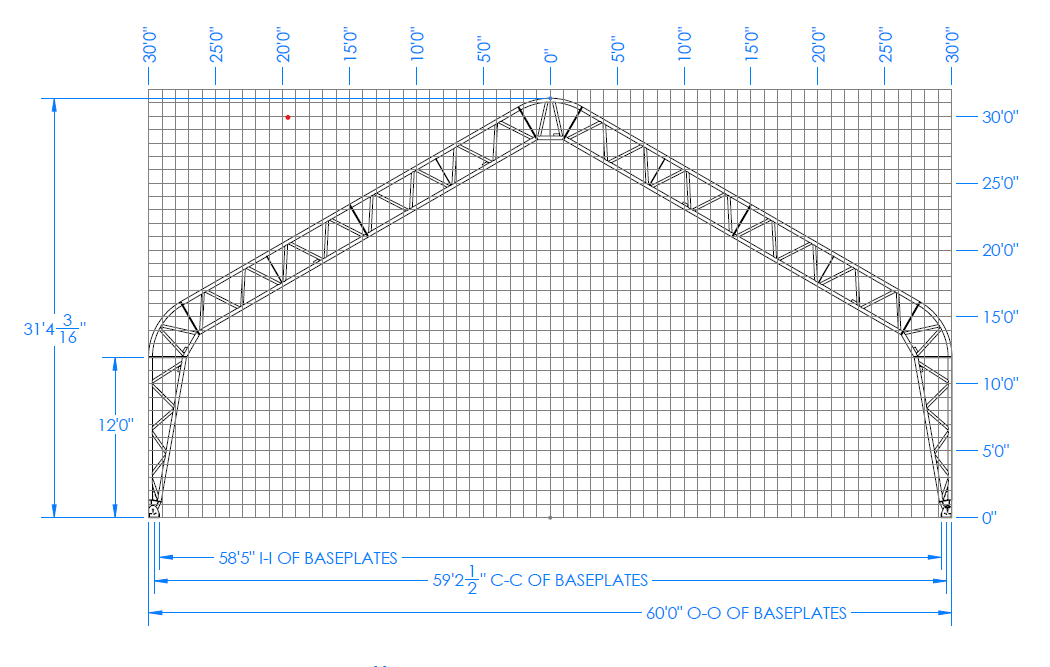

• Genesis series building profile is gable-styled.
• Pitch is standard at 7:12 (high pitch, approximately 30 degrees), and it can be customized to 5:12 (low pitch, approximately 23 degrees).
• Low slope is for wind and high slope is for snow.
• Truss spacing is dependent on application and site loads.
• Cover is made up of individual Keder panels.

• Post-production hot-dipped galvanized trusses.
• Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
• Available in white, green, blue, sandstone, brown, grey and red in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
• Genesis cover is made up of individual Keder panels.

• Stainless steel cables.
• Post-production hot-dipped galvanized purlins and secondaries.
• Hot-dipped galvanized bolt package.
• Open ended, partially enclosed or fully enclosed building.
• Custom eaves available.
• Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
• Doors can be designed into end walls.
• Customizable side opening.
• PVC (polyvinyl chloride) covers are available.
• Elite Fabric is available as an upgrade, and it extends your warranty.
• Branding and logo printing.

Genesis Series buildings can be built on the following foundation types: blocks, containers, grade beam, helical screw, piers, poured wall, slab.
