Atlas Series

Atlas features a dome-shaped design with a semi-spherical curved roof. It’s remarkably strong and distributes weight evenly, making it a stable and efficient format with no hard angles or corners, enclosing an enormous amount of space without any interior load-bearing columns. Arch-shaped structures also shed rain & snow well.

All Atlas Series profiles meet or exceed site-specific design criteria, offering narrow to wide spans with no center load-bearing columns, and trusses at 18 inches and up to 24 inches deep (approx. 46 cm to 61 cm) depending upon width and site loads.

• Fully engineered specifically for your site location.
• Available with a structural engineer’s seal.
• Arch-style design & sizing in many different profiles to fit your needs.
• Custom designs available.
• Exceptional value.

Commercial uses:

Salt and sand storage, equipment storage, warehouses, manufacturing, military buildings, sports complex, commodity storage, landscaping, lumber and logging, vehicle and automotive storage, waste management, energy, transportation and distribution, wash bays, mining, recycling, hangars and aviation, solid waste management, garage storage, maintenance building, retail, air transportations, boat storage, loading docks, parks & recreation, residential/private household, recreational facilities, transfer stations, driving range, marina and ports, tennis court.

Agricultural uses:

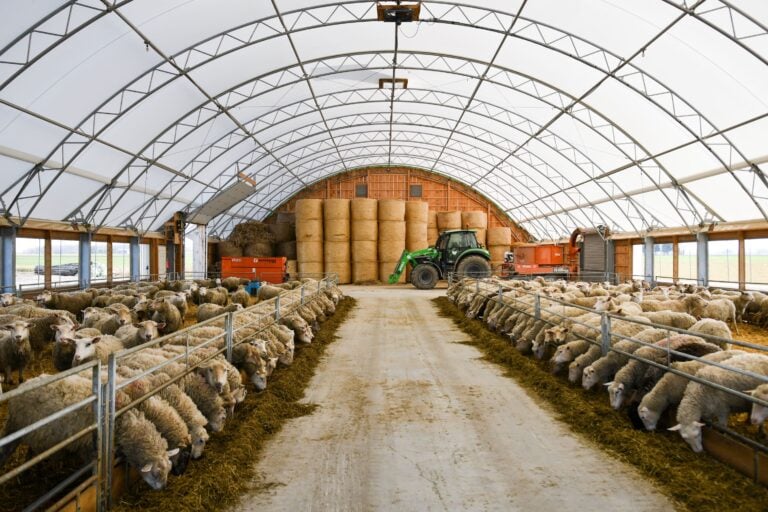

Dairy barns, beef barns, equine exercise barns, riding arenas, farm equipment storage, cash crop storage, livestock, hay & straw storage, sheep and goat barns, aquaculture, composting, agricultural storage, hog barn.

Municipal and Public Works uses:

Salt and sand storage, equipment storage, warehouses, manufacturing, military buildings, sports complex, commodity storage, vehicle and automotive storage, waste management, transportation and distribution, recycling, hangars and aviation, solid waste management, garage storage, maintenance building, air transportations, boat storage, loading docks, parks & recreational facilities, marina and ports.

Other industry uses:

Agribusiness, break bulk, cold storage, concert venues, events & hospitality, fire halls, indoor golf, port authority, poultry, retail, river terminals, swimming venues, temporary/portable, workshops.

• Building widths start at 24 ft. and up to 80 ft. wide (approx. 7.3 m to 24.3 m).
• Can be of any length.
• Building height and interior clearance are designed to meet the customer’s specific needs.
• Standard leg heights range from 6’ ft. to 10’ ft. (approx. 1.8 m to 3 m).
• Additional custom leg heights can be achieved.

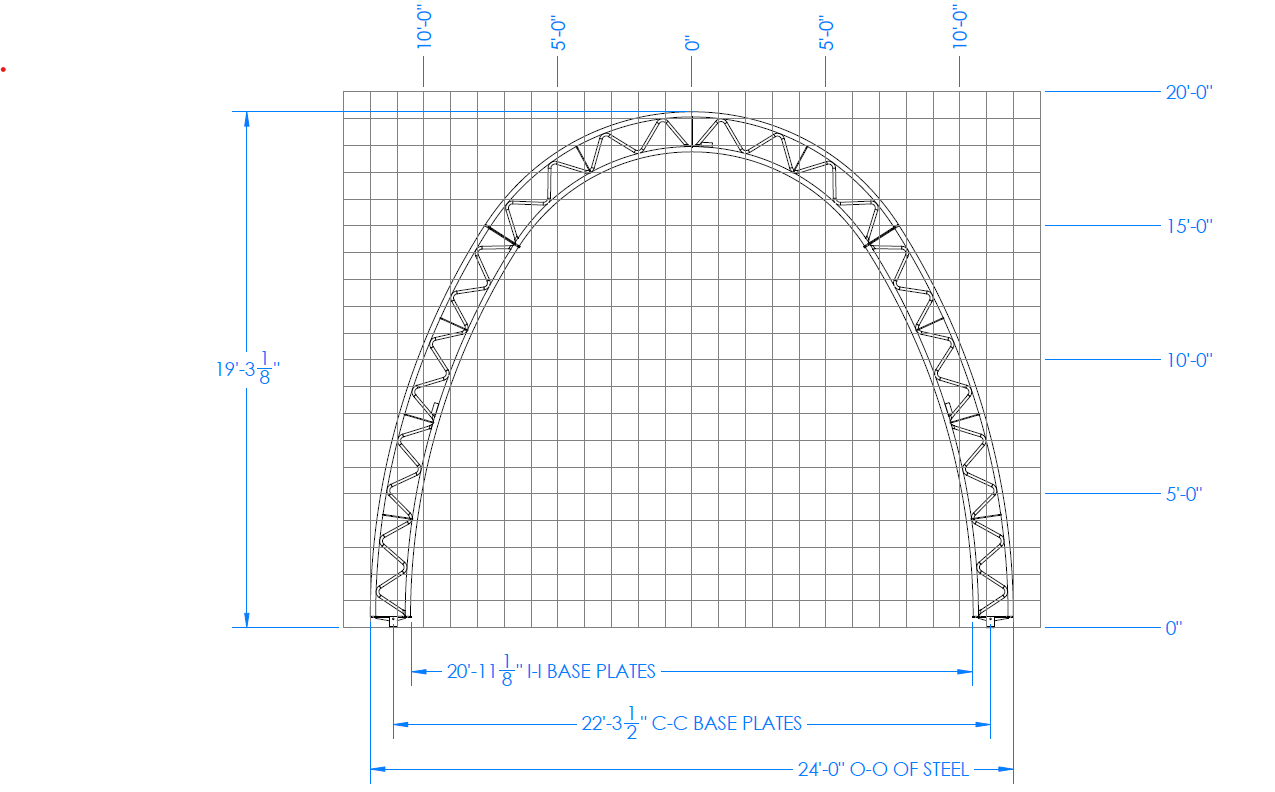

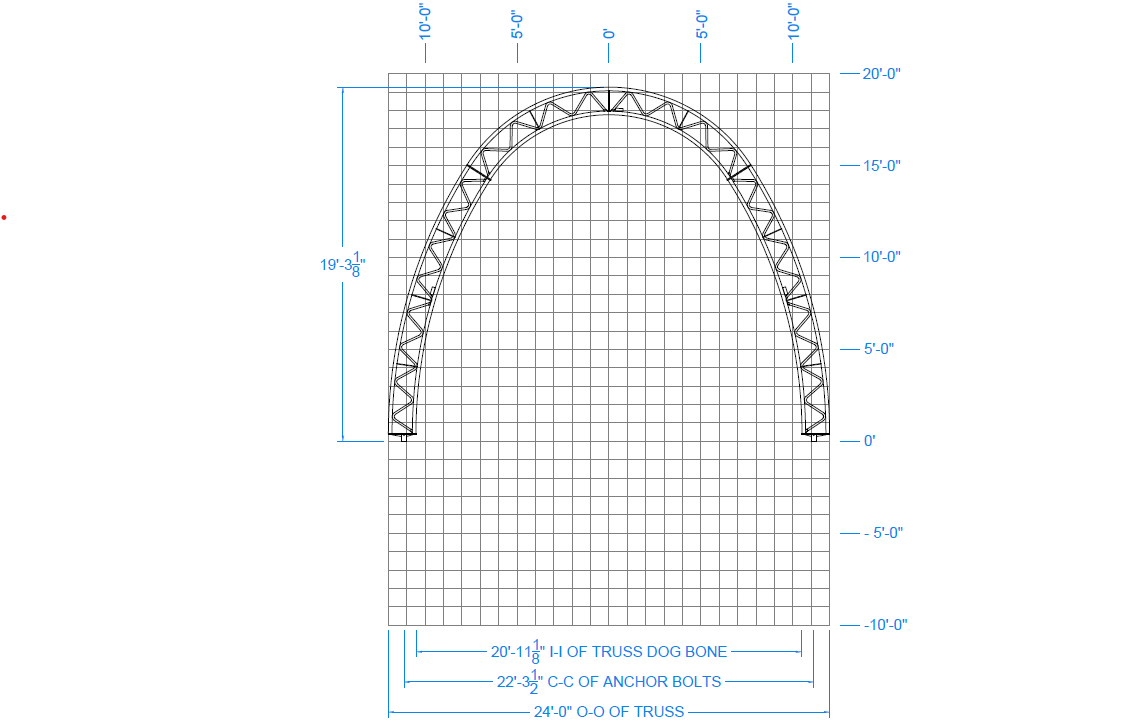

• Atlas series building profile is a dome or arch.
• Truss spacing is dependent on application and site loads.
• Cover is one piece as standard or upgradable to individual Keder panels.

• Post-production hot-dipped galvanized trusses.
• Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
• Available in white, green, blue, sandstone, brown, grey, red, and black in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
• Atlas comes with a one-piece cover as standard or it’s upgradable to individual Keder panels.
• End flaps are available in accent colours.

• Stainless steel cables.
• Post-production hot-dipped galvanized purlins and secondaries.
• Hot-dipped galvanized bolt package.
• Open ended, partially enclosed or fully enclosed building.
• Upgrade to individual Keder panels for each bay in case of high wind areas.
• Customizable steel leg heights.
• 2’ and 5’ eaves available.
• Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
• Doors can be designed into end walls.
• Customizable side opening.
• Open ridge vents can be included in your cover.
• PVC (polyvinyl chloride) covers are available.
• Elite Fabric is available as an upgrade, and it extends your warranty.
• Aprons can be provided with accent colours.
• End wall mesh vents.
• Branding and logo printing.

Atlas Series buildings can be built on the following foundation types: blocks, containers, grade beam, helical screw, piers, poured wall, precast, slab, posts, and base rail.
