Container Top Sets

container-header-1440x900-new

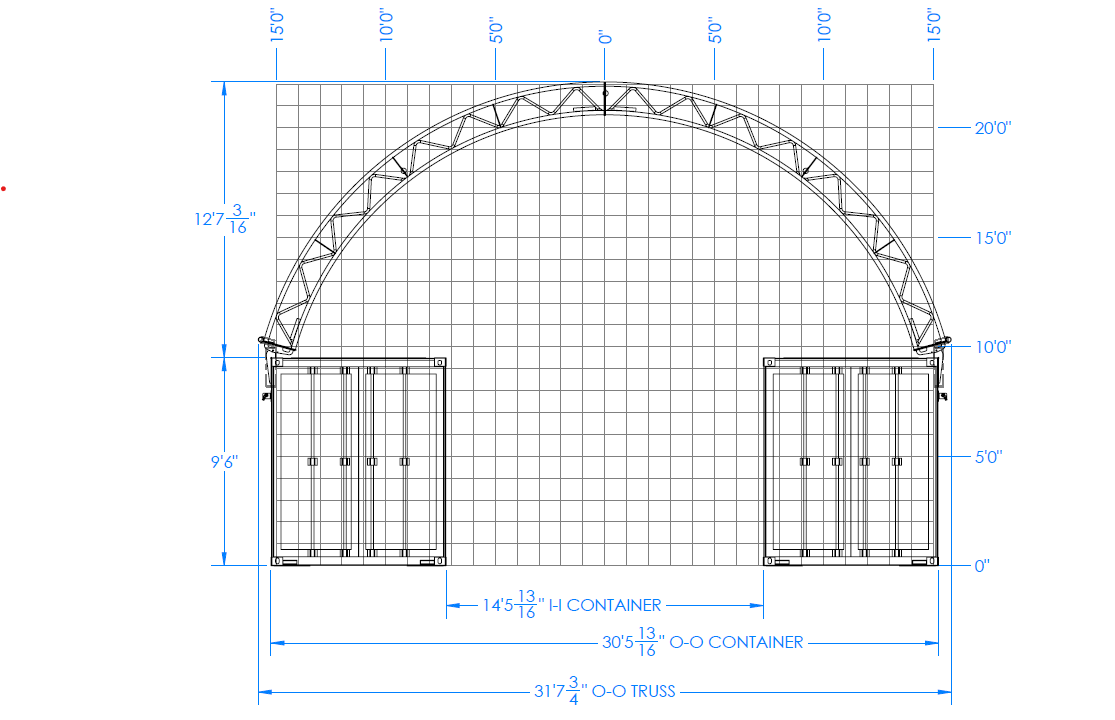

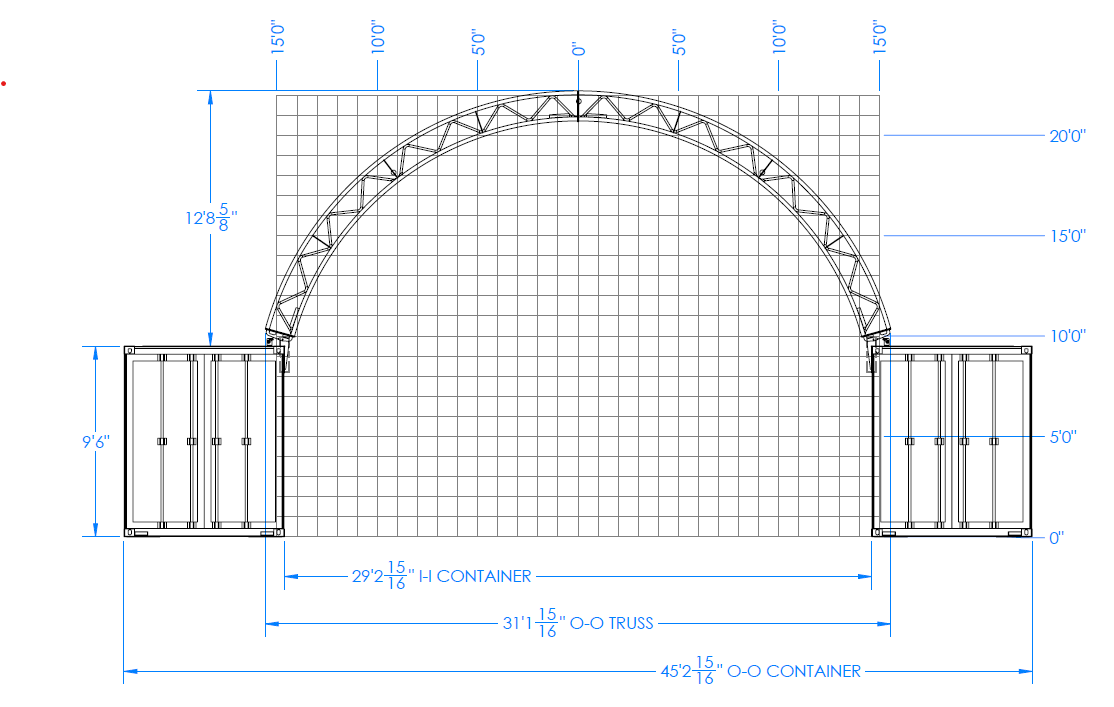

Installation available on the inside edge or the outside edge of the container.

Overview

Developed for quick and efficient construction on shipping container foundations, this solution is designed to be either a portable or a permanent installation, featuring some of our more flexible building series designs, with no hard angles or corners and optimized for interior space.



All Container Top Set profiles meet/exceed site-specific design criteria, offering narrow to wide spans with no center load-bearing columns, and trusses at 18 inches deep to manage site loads.



  • Fully engineered specifically for your site location.
  • Available with a structural engineer’s seal.
  • Designs & sizes in various profiles to fit your needs.
  • Custom designs available.
  • Exceptional value.
  • Designed specifically for durability and strength.

Industry Applications

Commercial uses:



General equipment storage, manufacturing, military buildings, sports complex, commodity storage, warehouses, landscaping, lumber and logging, vehicle and automotive storage, energy, transportation and distribution, wash bays, mining, garage storage, maintenance building, retail, loading docks, parks & recreation, residential/private household, recreational facilities.



Municipal and Public Works uses:



General equipment storage, manufacturing, military buildings, sports complex, commodity storage, warehouses, landscaping, vehicle and automotive storage, energy, transportation and distribution, wash bays, mining, garage storage, maintenance building, loading docks, parks & recreation, recreational facilities.



Other industry uses:



Retail, temporary/portable, workshops.

container-top-set-britespan-systems-inc

Technical specifications

  • Building widths available are 30’, 40’ and 50‘ (approx. 9 m, 12 m and 15 m).
  • Can be of any length.
  • Building height and interior clearance are designed to meet the customer’s specific needs.
  • Truss spacing is dependent on application and site loads.
  • Cover is one piece as standard or upgradable to individual Keder panels.
  • Containers not included.

Engineered for your site location

container-top-set-britespan-systems-inc

Standard features

  • Post-production hot-dipped galvanized trusses.
  • Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
  • Available in white, green, blue, sandstone, brown, grey, red and black in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
  • Container Top Sets come with a one-piece cover as standard or it’s upgradable to individual Keder panels.
container-top-set-britespan-systems-inc

Custom options

  • Stainless steel cables.
  • Post-production hot-dipped galvanized purlins and secondaries.
  • Hot-dipped galvanized bolt package.
  • Open ended, partially enclosed or fully enclosed building.
  • Upgrade to individual Keder panels for each bay in case of high wind areas.
  • Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
  • Doors can be designed into end walls.
  • Customizable side opening.
  • Open ridge vents can be included in your cover.
  • PVC (polyvinyl chloride) covers are available.
  • Elite Fabric is available as an upgrade, and it extends your warranty.
  • Branding and logo printing.

Container Top Set buildings can be built on the following foundation types: Containers.(Not included)
