Pro-Leg Series

Overview

The advanced PL Series has been designed to change timber beams used in the past, replacing obsolete construction techniques and providing a superior steel option that dramatically strengthens and outlasts any wooden posts.

All PL Series profiles meet or exceed site-specific design criteria, offering flexible interior spans with no center load-bearing columns, and trusses at 18 inches and up to 24 inches deep (approx. 46 cm to 61 cm) depending upon width and site loads.

Fully engineered specifically for your site location.
Available with a structural engineer’s seal.
Arch-style design & sizing in many different profiles to fit your needs.
Custom designs available.
Exceptional value.

Industry Applications

Commercial uses:

Salt and sand storage, equipment storage, general storage, commodity storage, warehousing, maintenance building, manufacturing facility, recycling and waste management, cold storage, loading dock, transfer station, mining, construction, retail equipment storage, transportation and distribution, government and municipal buildings, energy, oil and gas, retail.

Agricultural uses:

Dairy barn, beef barn, equine exercise barn, livestock, farm equipment storage, general storage, commodity storage, composting, sheep barn, hay & straw storage, cash crops, landscape equipment storage.

Municipal and Public Works uses:

Salt and sand storage, general equipment storage, commodity storage, warehousing, maintenance building, manufacturing facility, recycling and waste management, cold storage, loading dock, transfer station, construction, transportation and distribution, government and municipal buildings.

Other industry uses:

Agribusiness, automotive storage, aviation, boats/marina, break bulk, concert venues, events & hospitality, fertilizer distribution, fire halls, grain storage, hogs & swine, hospitality venues, indoor golf, lumber and logging, marine and ports, military, parks and recreation, port authority, river terminals, sport & recreation, wastewater treatment, workshop.

Technical specifications

Vertical I-Beam legs.
Building widths start at 40 ft. and up to 68 ft. wide (approx. 12 m to 21 m).
Can be of any length.
Building height and interior clearance are designed to meet the customer’s specific needs.
Standard leg heights range from 8’ ft. to 10’ ft. (approx. 2.5 m to 3 m).
Additional custom leg heights can be achieved.

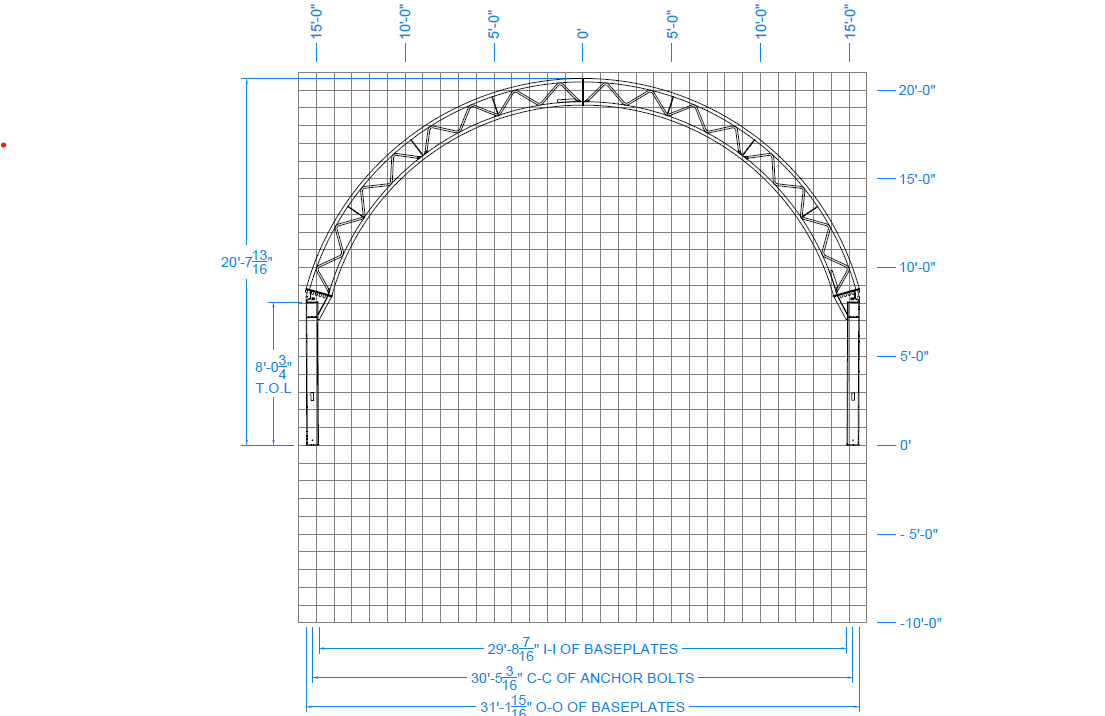

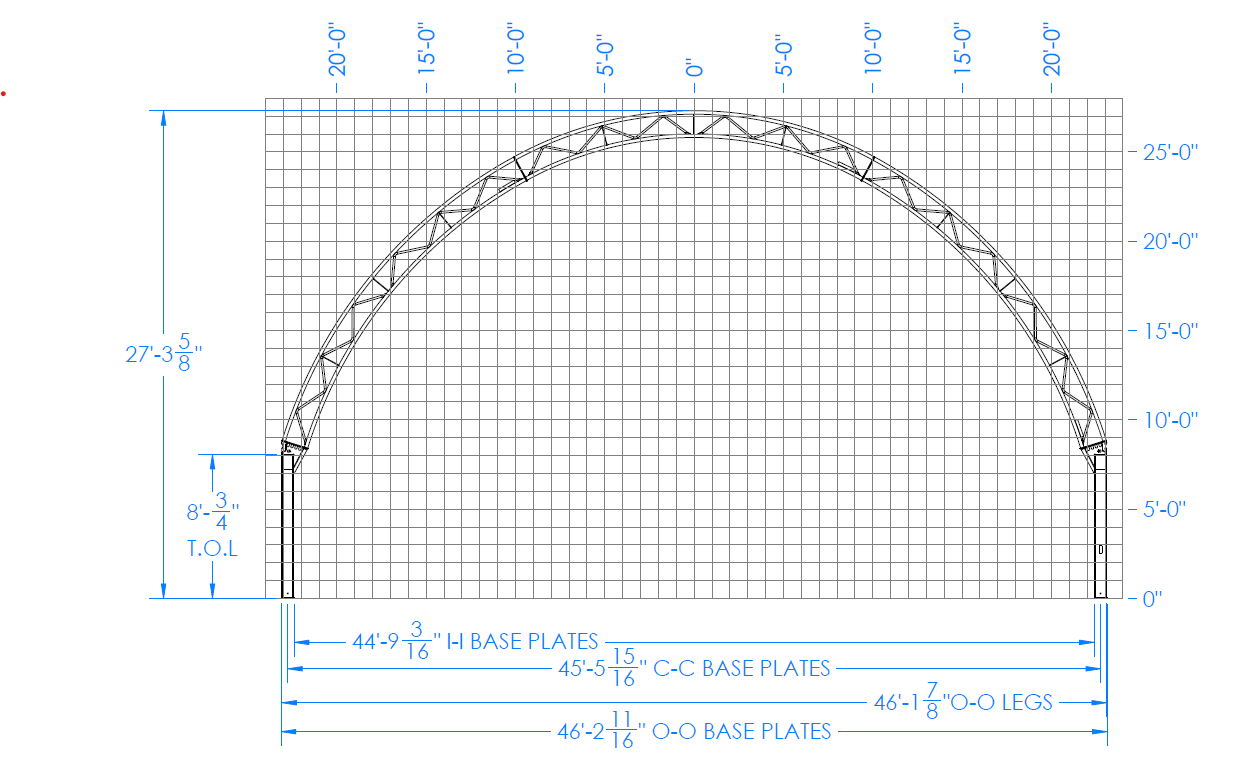

Pro-Leg series building profile is a dome or arch.
Truss spacing is dependent on application and site loads.
Cover is one piece as standard or upgradable to individual Keder panels.

Standard features

Post-production hot-dipped galvanized trusses.
Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
Available in white, green, blue, sandstone, brown, grey, red, and black in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
Pro-Leg comes with a one-piece cover as standard or it’s upgradable to individual Keder panels.
8’ and 10’ standard leg heights.
Vertical I-Beam legs which make it easy for installation of steel, wood, fabric or curtain side walls.
End flaps are available in accent colours.

Custom options

Stainless steel cables.
Post-production hot-dipped galvanized purlins and secondaries.
Hot-dipped galvanized bolt package.
Open ended, partially enclosed or fully enclosed building.
Upgrade to individual Keder panels for each bay in case of high wind areas.
Customizable steel leg heights.
2’ and 5’ eaves available.
Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
Doors can be designed into end walls.
Customizable side opening.
Open ridge vents can be included in your cover.
PVC (polyvinyl chloride) covers are available.
Elite Fabric is available as an upgrade, and it extends your warranty.
Aprons can be provided with accent colours.
Branding and logo printing.

Pro-Leg Series buildings can be built on the following foundation types: blocks, grade beam, helical screw, piers, poured wall, slab.
