Epic Series

Overview

Our classic building series is inspired by traditional and long-established design, with all the benefits of strong steel framing for superior ventilation, natural light, clear-span interiors and a “straight wall” form-function that’s flexible for any door location, accessories and sidewalls.



All Epic Series profiles meet or exceed site-specific design criteria, offering the ultimate wide span with optional load-bearing columns and trusses that begin at 34 inches deep and up-to 86 inches deep (approx. 86 cm to 218 cm) to manage site loads.

  • Fully engineered specifically for your site location.
  • Available with a structural engineer’s seal.
  • Gable-style design & sizing in many different profiles to fit your needs.
  • Custom designs available.
  • Exceptional value.

GET A FREE QUOTE

Agricultural industry uses:

Dairy barns, beef barns, goat barns, commodity storage.

Commercial industry uses:

General storage, commodity storage, manufacturing plants, warehousing, sports multi-complex, parks and recreation, transportation and distribution.

Municipal and Public Works uses:

General storage, transfer stations, warehousing, sports multi-complex, parks and recreation, transportation and distribution.

Other industry uses:

Agribusiness, aviation, livestock, boats/marina, break bulk, cold storage, commercial distribution, government facilities, indoor golf, landscaping, loading docks, logistics & transportation, maintenance/construction, marine and ports, military, mining, municipal, oil, gas, energy, parks and recreation, port authority, retail, river terminals, workshops.

Applications

  • Vertical I-Beam legs.
  • Building widths start at 60 ft. and up to 160 ft. wide (approx. 18 m to 49 m).
  • Can be of any length.
  • Building height and interior clearance are designed to meet the customer’s specific needs.
  • Epic series building profile is gable-styled.
  • Pitch is standard at 7:12 (high pitch, approximately 30 degrees), and it can be customized to 5:12 (low pitch, approximately 23 degrees).
  • Low slope is for wind and high slope is for snow.
  • Truss spacing is dependent on application and site loads.
  • Cover is made up of individual Keder panels.
Specifications

  • Post-production hot-dipped galvanized trusses.
  • Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
  • Available in white, green, blue, sandstone, brown, grey and red in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
  • Epic cover is made up of individual Keder panels.
  • Vertical I-Beam legs, which make it easy for installation of steel, wood, fabric or curtain side walls.
  • 2 ft integrated eaves.
Features

  • 5’ eaves – or custom eaves are available.
  • Overshot ridge available.
  • Stainless steel cables.
  • Post-production hot-dipped galvanized purlins and secondaries.
  • Hot-dipped galvanized bolt package.
  • Open ended, partially enclosed or fully enclosed building.
  • Customizable I-Beam steel leg heights.
  • Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
  • Doors can be designed into end walls.
  • Customizable side opening.
  • PVC (polyvinyl chloride) covers are available.
  • Elite Fabric is available as an upgrade, and it extends your warranty.
  • Branding and logo printing.

Epic Series buildings can be built on the following foundation types: blocks, grade beam, helical screw, piers, poured wall, slab.

Options

Agricultural industry uses:

Dairy barns, beef barns, goat barns, commodity storage.

Commercial industry uses:

General storage, commodity storage, manufacturing plants, warehousing, sports multi-complex, parks and recreation, transportation and distribution.

Municipal and Public Works uses:

General storage, transfer stations, warehousing, sports multi-complex, parks and recreation, transportation and distribution.

Other industry uses:

Agribusiness, aviation, livestock, boats/marina, break bulk, cold storage, commercial distribution, government facilities, indoor golf, landscaping, loading docks, logistics & transportation, maintenance/construction, marine and ports, military, mining, municipal, oil, gas, energy, parks and recreation, port authority, retail, river terminals, workshops.

Options
  • Vertical I-Beam legs.
  • Building widths start at 60 ft. and up to 160 ft. wide (approx. 18 m to 49 m).
  • Can be of any length.
  • Building height and interior clearance are designed to meet the customer’s specific needs.
  • Epic series building profile is gable-styled.
  • Pitch is standard at 7:12 (high pitch, approximately 30 degrees), and it can be customized to 5:12 (low pitch, approximately 23 degrees).
  • Low slope is for wind and high slope is for snow.
  • Truss spacing is dependent on application and site loads.
  • Cover is made up of individual Keder panels.
Options
  • Post-production hot-dipped galvanized trusses.
  • Fabrics are 12 oz & 13.5 oz High Density Polyethylene (HDPE), available in both Flame Retardant (FR) and Non-Flame Retardant (Non FR) versions.
  • Available in white, green, blue, sandstone, brown, grey and red in NovaShield Non-Flame retardant; white, blue, green, grey, sandstone, and black or white mesh in Flame-Retardant fabrics.
  • Epic cover is made up of individual Keder panels.
  • Vertical I-Beam legs, which make it easy for installation of steel, wood, fabric or curtain side walls.
  • 2 ft integrated eaves.
Options
  • 5’ eaves – or custom eaves are available.
  • Overshot ridge available.
  • Stainless steel cables.
  • Post-production hot-dipped galvanized purlins and secondaries.
  • Hot-dipped galvanized bolt package.
  • Open ended, partially enclosed or fully enclosed building.
  • Customizable I-Beam steel leg heights.
  • Chimneys/covered, ridge vents, insulation, lighting, HVAC, fire suppression and more can be added by contractor.
  • Doors can be designed into end walls.
  • Customizable side opening.
  • PVC (polyvinyl chloride) covers are available.
  • Elite Fabric is available as an upgrade, and it extends your warranty.
  • Branding and logo printing.

Epic Series buildings can be built on the following foundation types: blocks, grade beam, helical screw, piers, poured wall, slab.

Options

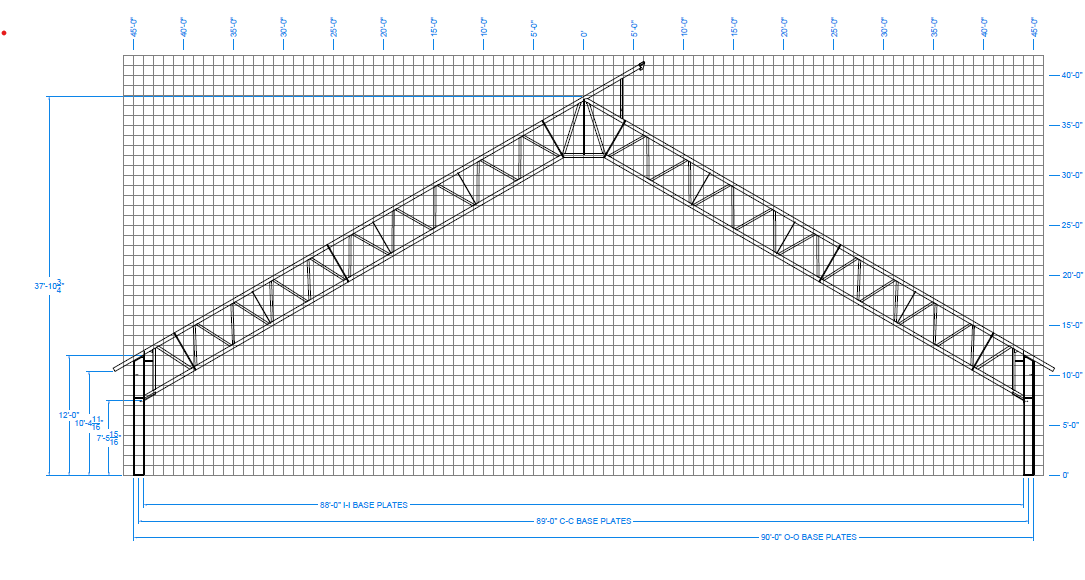

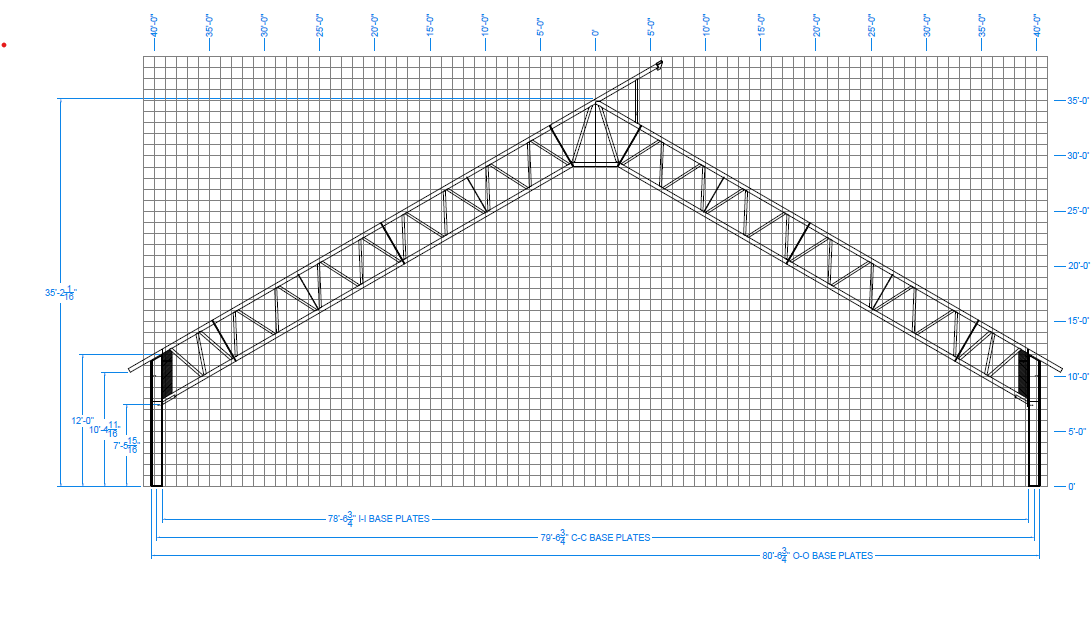

profile drawing

Built on a sturdy foundation of blocks, piers, poured walls, or helical screws, the Epic Series offers a strong, straight-wall design with unmatched flexibility. Its durable steel framing and spacious interiors support industries from agriculture to warehousing. With customizable eaves, ventilation, and door placements, this series delivers a reliable, long-term solution tailored to diverse operational demands.
